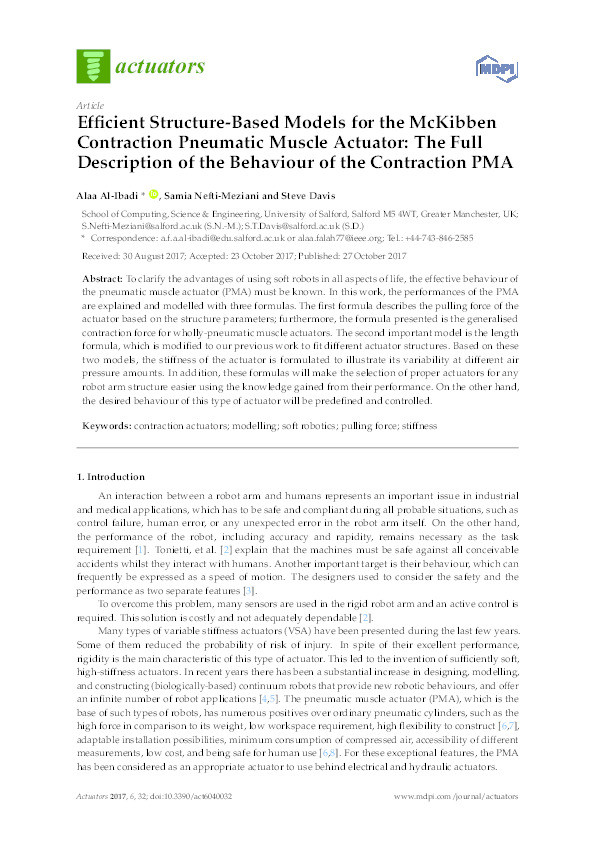

Efficient structure-based models for the McKibben contraction pneumatic muscle actuator : the full description of the behaviour of the contraction PMA

Al-Ibadi, A; Nefti-Meziani, S; Davis, ST

Abstract

To clarify the advantages of using soft robots in all aspects of life, the effective behaviour of the pneumatic muscle actuator (PMA) must be known. In this work, the performances of the PMA are explained and modelled with three formulas. The first formula describes the pulling force of the actuator based on the structure parameters; furthermore, the formula presented is the generalised contraction force for wholly-pneumatic muscle actuators. The second important model is the length formula, which is modified to our previous work to fit different actuator structures. Based on these two models, the stiffness of the actuator is formulated to illustrate its variability at different air pressure amounts. In addition, these formulas will make the selection of proper actuators for any robot arm structure easier using the knowledge gained from their performance. On the other hand, the desired behaviour of this type of actuator will be predefined and controlled.

Citation

Al-Ibadi, A., Nefti-Meziani, S., & Davis, S. (2017). Efficient structure-based models for the McKibben contraction pneumatic muscle actuator : the full description of the behaviour of the contraction PMA. Actuators open access journal, 6(4), 32. https://doi.org/10.3390/act6040032

• Journal Article Type: Article
• Acceptance Date: Oct 23, 2017
• Online Publication Date: Oct 27, 2017
• Publication Date: Oct 27, 2017
• Deposit Date: Oct 27, 2017
• Publicly Available Date: Oct 27, 2017
• Journal: Actuators
• Publisher: MDPI
• Volume: 6
• Issue: 4
• Pages: 32
• DOI: https://doi.org/10.3390/act6040032
• Publisher URL: http://dx.doi.org/10.3390/act6040032
• Related Public URLs: http://www.mdpi.com/journal/actuators
