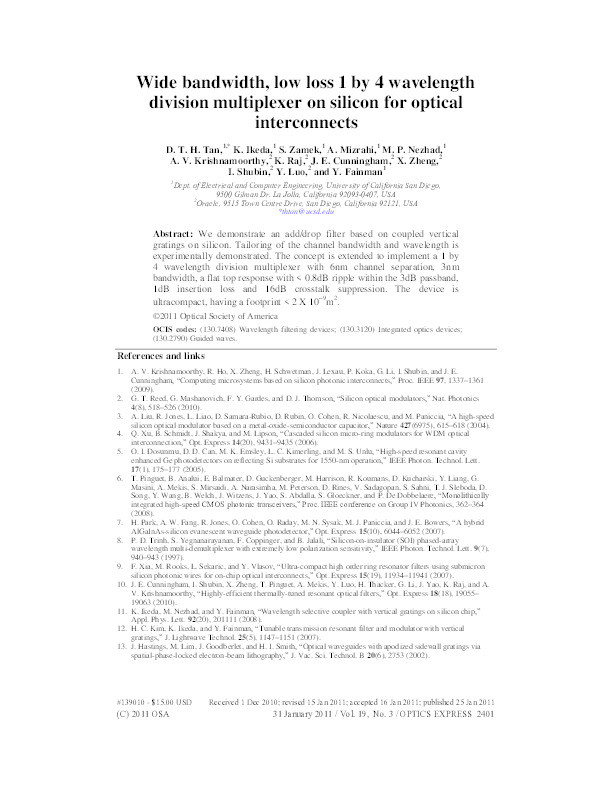

Wide bandwidth, low loss 1 by 4 wavelength division multiplexer on silicon for optical interconnects

Tan, D. T. H.; Ikeda, K.; Zamek, S.; Mizrahi, A.; Nezhad, M. P.; Krishnamoorthy, A. V.; Raj, K.; Cunningham, J. E.; Zheng, X.; Shubin, I.; Luo, Y.; Fainman, Y.

Abstract

We demonstrate an add/drop filter based on coupled vertical gratings on silicon. Tailoring of the channel bandwidth and wavelength is experimentally demonstrated. The concept is extended to implement a 1 by 4 wavelength division multiplexer with 6nm channel separation, 3nm bandwidth, a flat top response with < 0.8dB ripple within the 3dB passband, 1dB insertion loss and 16dB crosstalk suppression. The device is ultracompact, having a footprint < 2 X 10^(−9)m^2.

Citation

Tan, D. T. H., Ikeda, K., Zamek, S., Mizrahi, A., Nezhad, M. P., Krishnamoorthy, A. V., …Fainman, Y. (2011). Wide bandwidth, low loss 1 by 4 wavelength division multiplexer on silicon for optical interconnects. Optics express, 19(3), 2401-2409. https://doi.org/10.1364/OE.19.002401

• Journal Article Type: Article
• Acceptance Date: Jan 16, 2011
• Online Publication Date: Jan 25, 2011
• Publication Date: 2011
• Deposit Date: Sep 3, 2024
• Publicly Available Date: Sep 3, 2024
• Journal: Optics Express
• Print ISSN: 1094-4087
• Publisher: Optical Society of America
• Peer Reviewed: Peer Reviewed
• Volume: 19
• Issue: 3
• Pages: 2401-2409
• DOI: https://doi.org/10.1364/OE.19.002401
